HONDA CBR 250R FI

Honda CBR 250R

Honda CBR 250 R officially launched PT Astra Honda Motor (AHM) in Indonesia on February 25, 2011. Honda CBR 250R comes with Full Fairing Sporty design that is inspired by the model and the Honda CBR1000RR Honda VFR1200F and supported by the latest technological innovations that generate acceleration capabilities, agility, ease of control and fuel-efficient and environmentally friendly, making the Honda CBR 250R as "World Wide Sport Quarter" that "Fun to Ride". Honda CBR 250R is marketed in two types: ABS and STD.
Here are some advanced features that are owned by this motor:
  • Combined Antilock Braking System (Combined-ABS) * - First applied in the world for the 250 CC motorcycle class.
  • Pro-link Rear Suspension - Suspension Pro-Link system that is lightweight and compact with a 5 position adjustment to cushion the area, allowing a more progressive movement to add stability and ride comfort.
  • Front & Rear Disc Brake.
  • PGM-FI system (Injection) - Making the Honda CBR 250R is more fuel efficient and reduce exhaust emissions.
* Combined-ABS feature is only available on variants ABS

Differences type ABS and STD

Honda CBR 250R is equipped with ABS type of new technologies Combined Antilock Braking System (Combined-ABS). This technology is the incorporation of technology Antilock Braking System (ABS) with Brake Combi.
This technology was first applied in the world for motor 250CC class. This technology provides effective braking performance during sudden braking or on slippery road conditions.
Honda CBR 250R is equipped with a type of STD only braking Combi Brake

About Combined-ABS

Combined-ABS is a merger of the Combi-brake system with ABS system, whereby when the foot brake pedal is pressed, then the ABS system will work on front and rear wheels in proportion, whereas when the handbrake lever is pressed, then the ABS system will work on the front wheels only.
Antilock Braking System is a braking system that prevents wheel lock-up that occurs in sudden braking or hard. This system will work when part or all wheel stops while the motor is still drove make the vehicle out of control.
In type Combined-ABS equipped with 3-piston front brakes, speed sensor (speed sensor) on the front and rear wheels are functioning detect the condition of the vehicle, and the ABS modulator contained therein ECU. ECU processes the information from the speed sensor and control hydraulic pressure that led to each kaliper.Dengan keep the wheels are not locked, safe and effective braking during sudden braking or on slippery road conditions (when it rains).

Differences With Models Marketed In Thailand

Honda CBR 250R is currently still imported from Thailand entirely. Here are the technical differences antarayang marketed in Indonesia and in Thailand:
  • Switch headlights
  • Front license plate holder
  • Emissions EURO-2 (not the EURO-3) adjusting the regulations set by the government of Indonesia

Colour Honda CBR 250 STD

Honda CBR 250R STD comes in 3 colors:
  • Red
  • Tricolor
  • Repsol

Colour Honda CBR 250 ABS

Honda CBR 250R ABS comes in 2 colors:
  • Red
  • Tricolor
  • Repsol

Honda CBR 250R Specifications

Dimensions (H x L x H) 2033 x 720 x 1119 mm
Distance Axis Wheels 1,378 mm`
Lowest distance to the Land 146 mm
Empty weight 164 kg
Framework Twin Spar Steel
Suspension Front Telescopic
Rear Suspension Swing Arm (System Suspension Pro-Link)
Front Tire Size 110 / 70-17M / C (tubeless)
Rear Tire Size 140 / 70-17M / C (tubeless)
Brakes Front Hydraulic disc (available version of Anti-Lock Brake System)
Rear Hydraulic disc (available version of Anti-Lock Brake System)
Fuel Tank Capacity 13 liters
Type Machine CS250RE, 4 step, DOHC , Cylinder Single
Cooling System Liquid cooling (Radiator)
Fuel Supply System Injection (PGM-FI)
Diameter x Stroke 76.0 x 55.0 mm
Volume Step 249.67 cc
Comparison of Compression 10.7: 1
Maximum Power 29.0 PS (21.0kW) / 9,000 rpm
Maximum torque 23.0 Nm (2.3 kgf.m) / 7500 rpm
Type of Lubrication Wet Sump
Oil Capacity Engine Oils 1.8 liter
Clutch Wet Multiplate with Coil Springs
Transmission Constant mesh 6-speed Return
Shift Pattern 1-N-2-3-4-5-6
Ratio Shift 1 3,416
Ratio Shift 2 2,250
Ratio Shift 3 1,650
Ratio Shift 4 1,350
Ratio Shift 5 1,166
Ratio Shift 6 1,038
Primary Gear Reduction Ratio 2,807 / 2,571
Caster angle / Trail 25 ° 00` / 95 mm
Starter Electric starter
Ignition System Full-Transistor Battery Ignition
Battery Type 12 V - 6AH
Plug NGK 81MR8A9


Seguir leyendo »
11:16 0 comments

HONDA CBR 150R FI

Honda CBR 150R (2014)

Motorcycles Honda CBR 150R officially launched in Indonesia by PT Astra Honda Motor (AHM) on 30 June 2011. On 7 September 2014 PT AHM officially released version of the Honda CBR 150R local this. This product has a 96.2% local content. Although created locally but this motor performance has been upgraded and improved. Many additional features have also been implemented as a Pro-Link Rear Suspension, and frame truss frame that makes this bike fits with the slogan "Made of Champions".
We are optimistic, so you drive it, you will get a pleasant driving experience as has been proven by the winners, - President Director of AHM Toshiyuki Inuma

Features Honda CBR 150R

Here are the features of the Honda CBR 150R
  • Order truss frame that is lightweight and high strength
  • Racing engine 4 stroke, 150cc, DOHC, 4 valve, 6-speed that was adopted from MotoGP racing technology
  • Pro-Link Rear Suspension - make the shock feels softer thanks to the ability to adjust the height following the road conditions.
  • Digital speedometer - along with complete information of temperature, speed, fuel, trip odometer, digital clock and a malfunction indicator lamp.
  • Secure key shutter (automatic ignition key safety)
  • Disc brakes on the front wheels and rear wheels.
  • Tubeless tires.

Colour Honda CBR 150R

Honda CBR 150R comes with 4 colors:
  • Black
  • Red
  • RWB (Red White Blue)
  • Repsol

Honda CBR 150R Specifications

Dimensions (H x L x H) 1977 x 711 x 1117 mm
Distance Axis Wheels 1,296 mm
Lowest distance to the Land 160 mm
Altitude Seating 786 mm
Empty weight 143 kg
Minimum Turn Radius 2,600 mm
Framework Diamond (Truss) Frame
Suspension Front Telescopic
Rear Suspension Single with Pro-Link Suspension System
Front Tire Size 100 / 80-17M / C (tubeless)
Rear Tire Size 130 / 70-17M / C (tubeless)
Brakes Front Hydraulic disc with Double Piston
Rear Hydraulic disc, with Single Piston
Fuel Tank Capacity 13.2 liters
Type Machine 4 Steps, DOHC , 4 valves, Single Cylinder
Cooling System Liquid cooling (radiator) with Automatic Electric Fan
Supply of Fuel Injection System Programmed Fuel Injection (PGM-FI)
Diameter x Stroke 63.5 x 47.2 mm
Volume Step 149.5 cc
Comparison of Compression 11.0: 1
Type of Lubrication Wet Sump
Oil Capacity Engine Oils 1.0 liter
Clutch Wet Multiplate with Coil Springs
Transmission Manual, 6 speed
Shift Pattern 1-N-2-3-4-5-6
Ratio Shift 1 3,083
Ratio Shift 2 1,941
Ratio Shift 3 1,500
Ratio Shift 4 1,227
Ratio Shift 5 1,041
Ratio Shift 6 0.923
Primary Gear Reduction Ratio 3,260
Final Reduction Gear Ratio 3,066
Type Starter Electric Starter
Maximum Power 12.6kW (17.1 PS) / 10,500rpm
Ignition Type Full Transistor


Seguir leyendo »
11:15 0 comments

HONDA CB 150R FI

Honda CB150R StreetFire (2012)

Overall Review Rating 4.8 of 5 | Reviews (14)
Honda CB150R StreetFire was first shown at the event in Jakarta Motorcycle Show (JMCS) 2012 dated October 31, 2012.
This motor uses based CBR150 with 150CC engine, 6 speed, 4 stroke, DOHC , liquid cooled and equipped with PGM-FI technology . Various technologies have made ​​the Honda CB150R be the most superior engine in its class.
With very superior technology, Honda CB150R StreetFire can reach a maximum speed of 122 km / h and acceleration of 10.6 seconds for a distance of 0-200 meters.
To meet the needs of motor sport are happy to modify the vehicle, the Honda CB150R this StreetFire using new innovative Truss Frame and has been designed to be easily modified. Honda CB150R framework is also designed to reduce engine vibration optimally, resulting in stability, agility and comfort while driving.
Here are some excellent features of Honda CB150R StreetFire:
  • Pro-Link rear monoshock (this feature is also used by the Honda CBR 250R which with this feature feels softer seat, stable and comfortable because the suspension is able to adapt to various road conditions).
  • Disc brakes front and rear.
  • Analog-digital speedometer (panel meters with white background sporty graphics and supported futuristic digital panel and displays detailed information such as the speedometer, odometer, trip meter, clock, fuel meter in the display).
  • Cross racing wheels wrapped with 6 patterned star tubeless tires.
  • Secure shutter key .
Design, features and technology make it a Streetfire CB150R Honda motor sport with value and most valuable features in Indonesia.

Colour Honda CB150R StreetFire

Honda CB150R StreetFire comes in 7 colors:
  • Black
  • Red
  • White Red
  • White Blue

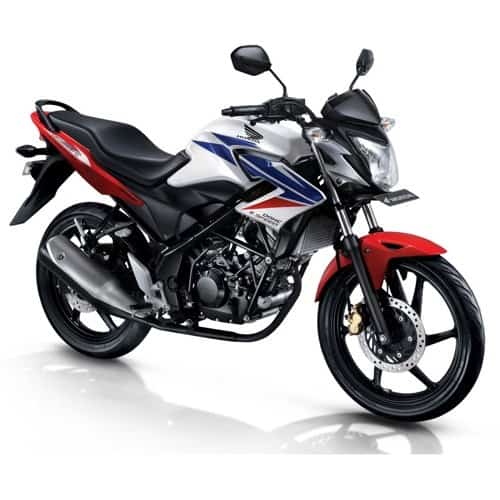

  • RWB (Red White Blue)
  • Special Edition - Racing Red

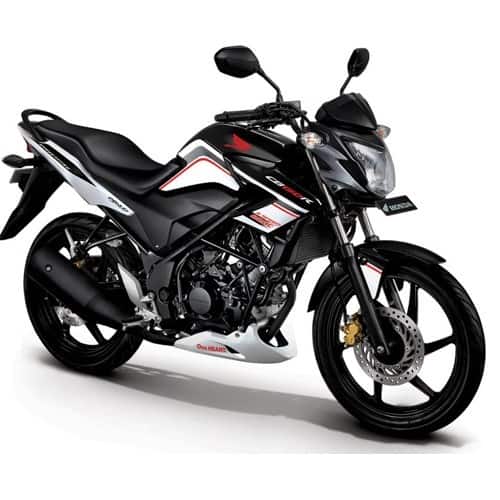

  • Special Edition - Racing Black
Honda CB150R are sold by all authorized Honda dealers are not paired Under Cowl accessories that are typically seen in TV ads and promotional materials (paired at the bottom of the machine). Accessories Under Cowl is part of the official Honda CB150r accessories package that can be purchased through us .

Specifications Honda CB150R

DIMENSIONS
Dimensions (H x L x H) 2,008 x 719 x 1,061
Distance axis Wheels 1,290 mm
Lowest distance to the ground 148 mm
Seat height 792 mm
Turn the steering angle R 450 L 450
Minimum Turn Radius 1,980 mm
Weight empty 131 kg
ORDER
Framework Diamond (Innovative Truss Frame / Trellis)
The front suspension Telescopic
Rear suspension With a single swing arm suspension (Prolink Suspension System)
Front tire size 80/90 - 17M / C 44P (tubeless)
Rear Tire Size 100/80 - 17M / C 52P (tubeless)
The front brakes Hydraulic disc with dual piston
Rear brake Hydraulic disc with single piston
MACHINE
Type of machine 4 Steps DOHC, 4 valves
Type of transmission 6 Speed
Gear shift pattern (1-N-2-3-4-5-6)
Ratio gearshift Teeth 1: 3,083
Teeth 2: 1.941
Gears 3: 1,500
Teeth 4: 1,227
Teeth 5: 1,041
Teeth 6: 0.923
Cooling system Liquid cooling (radiator) with automatic electric fan
Diameter x measures 63.5 x 47.2 mm
Volume measures 149.48 cc
Compression ratio 11.0: 1
Maximum power 12.5 kW (17 PS) / 10,000 rpm
The maximum torque 12.6 Nm (1:28 kgf.m) / 8:00 rpm
Clutch Manual, wet multiplate clutch with coil spring
Starter Pedal & Electric
CAPACITY
The capacity of the fuel tank 12 liters
Fuel supply system Injection (PGM-FI)
Oil Capacity Engine Oils 1.0 liter in the periodic replacement
ELECTRICAL
Battery 12V - 5.0 Ah (type MF)
Ignition system Full transisterized


Seguir leyendo »
11:12 0 comments

HONDA MEGA PRO

New Honda Mega Pro (2014)

Overall Review Rating 4.4 of 5 | Reviews (8)
Honda New Mega Pro FI launched on January 27, 2014 with 150CC engine, SOHC, 5 speed that has been equipped with PGM-FI technology .
With this new engine, Honda New Mega Pro FI has met the EURO 3 emission standards applied in Indonesia. and is able to achieve a more efficient fuel consumption of 10% of its predecessors or 46.2 km / liter (ECE-R40 method).
Here are some of the security features of Honda New Mega Pro FI:
  • Features adjustable monoshock high performance with 'Dual-Springs System', in which the adjustable spring bottom (hard, normal or soft) according to the needs or tastes of the user.
  • Disc brakes on the front and rear wheels which produce optimal braking force.
  • Digital speedometer.
  • Secure shutter key .
  • Features passing lamp is beneficial for long-distance travel or touring.

Colour Honda New Mega Pro FI

New Honda Mega Pro FI comes in 4 colors:
  • Black
  • Red

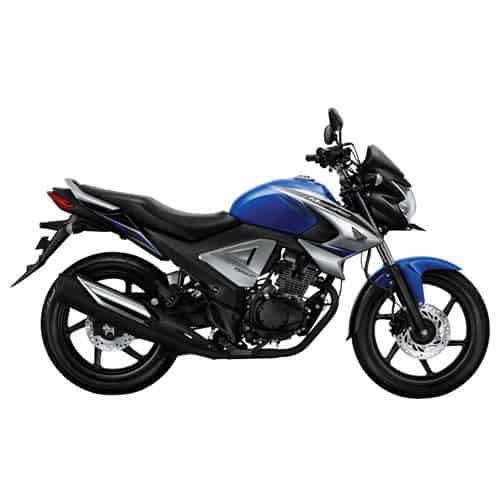

  • Blue

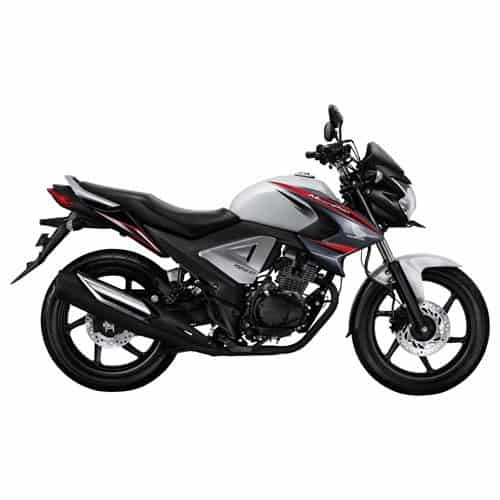

  • White

Specifications Honda New Mega Pro

DIMENSIONS
Dimensions (H x L x H) 2052 x 742 x 1079 mm
Distance axis Wheels 1,316 mm
Lowest distance to the ground 156 mm
Weight empty 135 kg
ORDER
Framework Diamond Pattern (steel diamond)
The front suspension Telescopic
Rear suspension Single (monoshock) adjustable hard and soft
Front tire size 80/100 - 17 M / C 46P
Rear Tire Size 100/80 - 17 M / C 55P
The front brakes Hydraulic disc with dual piston
Rear brake Hydraulic disc with single piston
MACHINE
Type of machine SOHC, 4-Step, 5-Speed
Diameter x measures 57.3 x 57.84 mm
Volume measures 149.5 cc
Compression ratio 9.5: 1
Maximum power 9.8 kW (13.3 PS) / 8500 rpm
The maximum torque 12.3 Nm (1.25 kgf.m) / 6500 rpm
Clutch Manual, Multiplate Wet Clutch
Starter Foot starter and electric starter
Plug NGK CPR9EA-9
CAPACITY
The capacity of the fuel tank 12.3 liters
Oil Capacity Engine Oils 1 liter in the periodic replacement
Transmission 5 speed
Gear shift pattern 1-N-2-3-4-5
ELECTRICAL
Battery 12 V - 5 Ah
Ignition system Full Transisterized


Seguir leyendo »
11:11 0 comments

HONDA VERZA 150 FI

Honda Verza 150 (2013)

Honda Verza 150 with the tagline "Perfect Beginning Performance Class" has been released by PT Astra Honda Motor (AHM) on January 17, 2013 as an entry-level sport bike for everyday activities with the best functional features and affordable prices.

Features Honda Verza 150

Here are some of the features of Honda Verza 150 :
  • Sporty and masculine design - the use of striping lines fused with the shroud sporty design of the headlights, racing wheels with tubeless tires and footrest rear suspension system that reinforces the impression of sporty and modern.
  • Wide steering angle (90 °) makes it able to maneuver swiftly in any road condition.
  • Dual suspension system strong and tough (heavy duty twin suspension) at the rear.
  • Magnetic Key Shutter - safety ignition key magnet (magnetic shutter key) is effective in reducing the risk of theft of a motor.
  • Bank Angle Sensor - fall sensor that protects the rider during the fall (the machine will turn off automatically when the motorcycle is at a slope angle of 60 ° or more.
  • Sprocket Chain Stopper - chain security features that keep the wheels are not locked at the time regardless of the gear chain.
Honda Verza 150 equipped with a 150cc engine, 4 stroke, SOHC, single-cylinder and 5 speed has implemented a fuel supply system PGM-FI (Programmed Fuel Injection). With these machines, Honda Verza 150 can reach a maximum speed of 110 km / h acceleration of 11.5 seconds for a distance of 0-200 meters.
This motor also has the most economical fuel consumption in its class, which is 48 km / liter (ECE R40 method).

Differences variant Honda Verza 150

Honda Verza 150 released in 2 variants, variants and variants spoke wheel cast wheel. The difference of the two only on the wheel motors which variant spoke wheel using a wheel radius, while the variant using a cast wheel racing wheel.

Colour Honda Verza 150 SW

Honda Verza 150 SW comes in 4 colors:
  • White
  • Black
  • Red

Colour Honda Verza 150 CW

Honda Verza 150 CW comes in 4 colors:
  • White
  • Black
  • Red
  • Silver

Specifications Honda Verza 150

DIMENSIONS
Dimensions (H x L x H) 2056 x 742 x 1054 mm
Distance axis Wheels 1,318 mm
Lowest distance to the ground 156 mm
Weight empty 129 kg (Type CW & SW)
Altitude Seating 773 mm
Minimum Turn Radius 2,000 mm
ORDER
Framework Diamond Steel
The front suspension Telescopic
Rear suspension Double suspension
Front tire size 80/100 - 17 M / C 46P (CW type Spoke tubeless and tube type)
Rear Tire Size 100/90 - 17 M / C 55P (CW type Spoke tubeless and tube type)
The front brakes Hydraulic disc with dual piston
Rear brake Drum
MACHINE
Type of machine 4 Steps SOHC, single-cylinder
Cooling system Air cooling
Diameter x measures 57.3 x 57.8 mm
Volume measures 149.2 cc
Compression ratio 9.5: 1
Maximum power 9.72 kW (13.2 PS) / 8500 rpm
The maximum torque 12.7 Nm (1.29 kgf.m) / 6,000 RPM
Clutch Manual, Multiplate Wet Clutch
Starter Starter foot and electric starter
Plug NGK CPR9EA-9
CAPACITY
The capacity of the fuel tank 12.2 liters
Oil Capacity Engine Oils 1 liter in the periodic replacement
Transmission 5 speed
Gear shift pattern 1-N-2-3-4-5
ELECTRICAL
Battery 12 V - 3.5 Ah
Ignition system Full Transisterized


Seguir leyendo »
11:09 0 comments

HONDA PCX FI

Honda PCX

Honda PCX 150 is present in Indonesia on June 15, 2012 replacing PCX 125 and is expected to make Honda as the market leader in the segment A / T Scooter premium class in Indonesia.
Here are some advanced features that are owned by Honda PCX this:
  • Idling stop system - this technology will be temporarily shut off the engine after the scooter stops within 3 seconds and come back to life when the driver pulls the lever gas
  • Combi brake
  • Technology injection (PGM-FI)
  • Anti-theft alarm
  • Standard automatic side
  • Ignition magnet (Secure Key Shutter)

Colour Honda PCX

Honda PCX 150 is present in Indonesia in 3 colors:
  • Luxury Red
  • Glamour White
  • Prestige Black

Specifications Honda PCX

DIMENSIONS
Dimensions (H x L x H) 1,917 x 738 x 1,094
Distance axis Wheels 1,315 mm
Lowest distance to the ground 140 mm
Weight empty 129 kg
ORDER
Framework Backbone
The front suspension Telescopic
Rear suspension Swing arm with dual shock absorbers
Front tire size 90 / 90-14M / C 46P (without tires)
Rear Tire Size 100 / 90-14M / C 57P
The front brakes Hydraulic disc with 3-piston
Rear brake Drum
Braking system Combi Brake System
MACHINE
Type of machine 4 Steps SOHC
Cooling system Cooling with liquid
Diameter x measures 58.0 x 57.9 mm
Volume measures 152.9 cc
Compression ratio 10.6: 1
Maximum power 9.67 kW (13.1 PS) / 8500 rpm
The maximum torque 13.1 Nm (1:34 kgfm) / 5500 rpm
Clutch Automatic V-Matic
Starter ACG starter electrical system
Plug NGK CPR7EA-9
CAPACITY
The capacity of the fuel tank 5.9 liter
Fuel supply system Injection (PGM-FI)
Oil Capacity Engine Oils 0.8 liter in the periodic replacement
Transmission Automatic V-Matic
ELECTRICAL
Battery 12V - 5AH (type MF)
Ignition system Full transistor, Battery


Seguir leyendo »
11:08 0 comments
Subscribe to: Posts (Atom)
