HONDA REVO FI

Honda Revo

Honda Revo is the most popular motorcycle in Indonesia. With the tagline "Cool Stud We", Honda Revo FI comes in 3 variants:

• Revo FI FIT
• Revo FI STD
• Revo FI CW

Honda Revo series of excellent features are:

• Robust and efficient injection machine PGM-FI technology, making New Honda Revo FI is more powerful, easy to maintain.
• Versatile luggage capacity of 7 liters.
• Front disc brake assist braking.
• Secure key shutter - safety ignition key magnet (magnetic shutter key) is effective in reducing the risk of theft of a motor.

Honda Revo FI has a fuel consumption of 62.2 km / liter under test through test methods ECE R40.

Differences FI FIT Revo, Revo and Revo FI FI STD CW

Here are the different features of these three variants.

	Revo FI FIT	Revo FI STD	Revo FI CW
Type Wheels	Rims finger	Rims finger	Racing wheel
Secure Key Shutter Technology	Nothing	There is	There is
Design Speedometer	There is no gear indicator and the indicator lights only sign 1	Indicator gear there and has two indicator lights sign	Indicator gear there and has two indicator lights sign

Colour Revo FI Fit

Revo FI Honda Fit comes in 3 colors:

• Green
• Blue
• Red

Honda Revo FI FIT Green
Rp. 12,950,000

Honda Revo FI FIT Blue
Rp. 12,950,000

Honda Revo FI FIT Red
Rp. 12,950,000

Colour Revo FI STD

Honda Revo FI STD comes in 4 colors:

• Green
• Blue
• Red
• Black

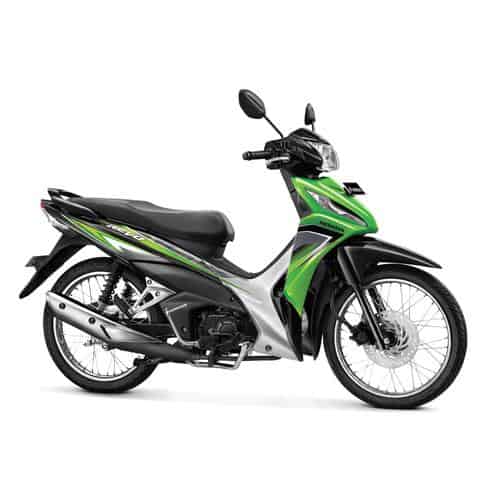

Honda Revo FI STD Green
Rp. 13,500,000

Honda Revo FI STD Blue
Rp. 13,500,000

Honda Revo FI STD Red
Rp. 13,500,000

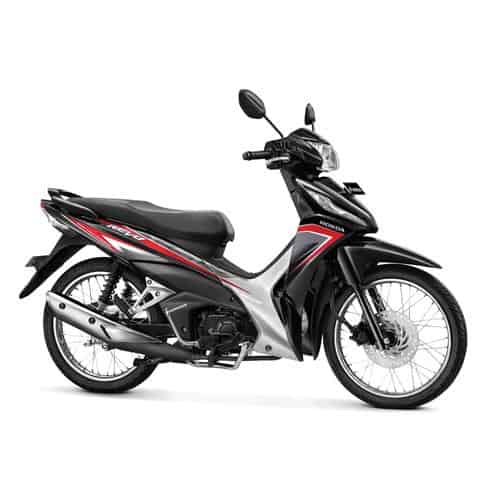

Honda Revo FI STD Black
Rp. 13,500,000

Colour Revo FI CW

Honda Revo FI CW comes in 4 colors:

• Green
• Blue
• Red
• Black

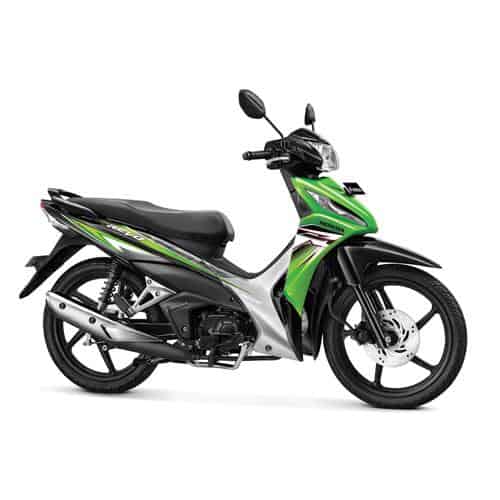

Honda Revo FI CW Green
Rp. 14,300,000

Honda Revo FI CW Blue
Rp. 14,300,000

Honda Revo FI CW Red
Rp. 14,300,000

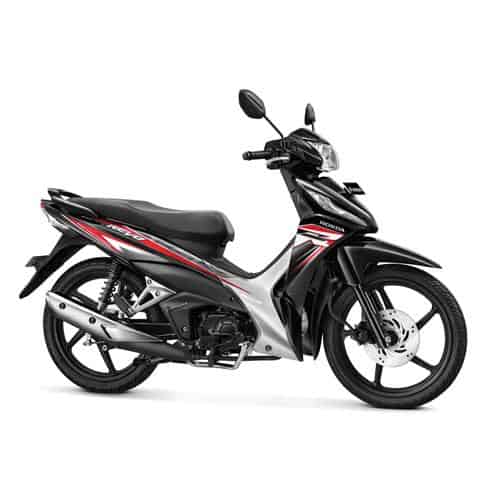

Honda Revo FI CW Black
Rp. 14,300,000

Specifications Motor Honda Revo FI

DIMENSIONS
Dimensions (H x L x H)	1,919 x 709 x 1,080 mm
Distance axis Wheels	1,227 mm
Lowest distance to the ground	135 mm
Weight empty	97.5 kg
ORDER
Framework	Backbone
The front suspension	Telescopic
Rear suspension	Swing arm with double suspension
Front tire size	70/90 - 17 M / C 38P
Rear Tire Size	80/90 - 17 M / C 44P
The front brakes	Hydraulic disc with single piston
Rear brake	Drum
MACHINE
Type of machine	4 Steps SOHC, single-cylinder
Cooling system	Air cooling
Diameter x measures	50 x 55.6 mm
Volume measures	109.17 cc
Compression ratio	9.3: 1
Maximum power	6.56 kW (8.91 PS) / 7500 rpm
The maximum torque	-
Clutch	Multiple wet clutch with Diaphragm Spring
Starter	Foot and electric starter
Plug	NGK CPR6EA-9S or NDU20EPR9S
CAPACITY
The capacity of the fuel tank	4.0 liter
Oil Capacity Engine Oils	0.8 liter in the periodic replacement
Transmission	4 speed / fixed mesh
Gear shift pattern	N - 1 - 2 - 3-4 - N
ELECTRICAL
Battery	MF battery, 12 V - 3 Ah
Ignition system	Full Transisterized
